Breath Gas Test System

Key Features & Benefits

FeNO

CaNO

FnNO

sNO

High-sensitivity Sensing Technology

Rapid and Stable Measurement

Automatic Flow Control

Enhanced measurement consistency

Triplicate Measurement Support

Standardized Measurement Repeatability QC

Real-time Waveform Display

Visible quality control process

Physical Dual-path Isolation (Inh/Exh)

Minimized Cross-contamination Risk

Combined Upper & Lower Airway Assessment

Single-sensor Multi-parametric Analysis

Accuracy, Safety & Reliability

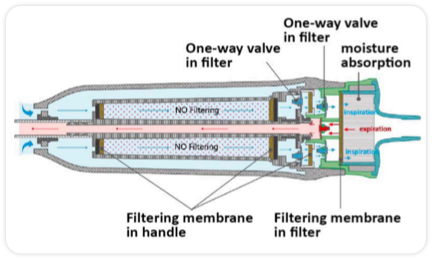

Dual-Defense System: A unidirectional handle and high-efficiency filters physically isolate airflow, significantly preventing cross-contamination.

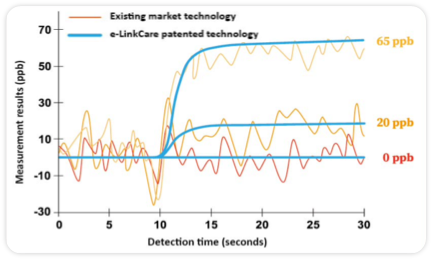

Exclusive biosensor technology supports highly sensitive and excellent precision. Detection limit as low as 1 ppb.

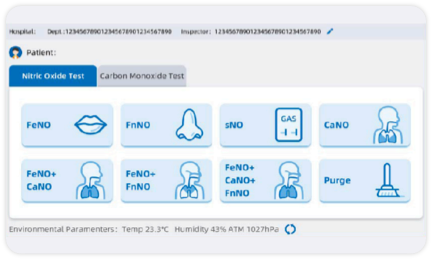

Available for FeNO, CaNO, FnNO. Support the joint-measurement model for airway examination.

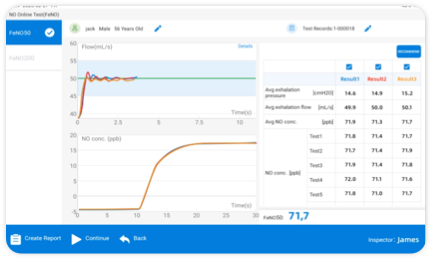

Built-in "Practice Mode" reduces consumable waste. Supports 3 consecutive tests with auto-averaging, fully aligning with ATS/ERS guidelines.

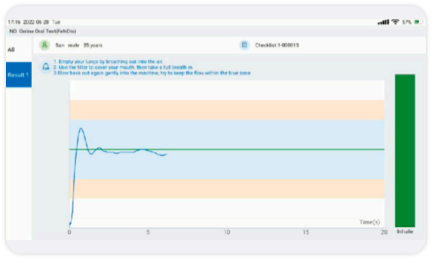

Bypass patient data entry for immediate operation. Designed to maximize patient throughput in fast-paced clinical environments.

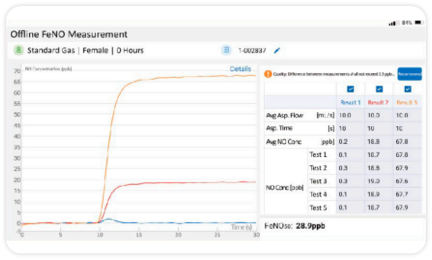

Each test includes a built-in zero-gas measurement to eliminate zero-point drift-ensuring accurate and reliable FeNO results.

Specifications

Product name	UBREATH® Breath Gas Test System
Model	BA200
Detection Principle	Advanced Electrochemical Sensor
Measurement Range	NO:0-4000 ppb \| co:0-250 ppm
Low Detection Limit	1.0 ppb
Accuracy (NO)	≤ 50 ppb: +2.5 ppb >50 ppb: +5.0%
Repeatability(NO)	≤50 ppb: sD< 1.5 ppb >50 ppb: CV<3.0%
Analysis Time	≤ 40 seconds
Exhalation Time	Standard Mode/Pediatric Mode
Display	10.1-inch IPS Touchscreen
Operating Environment	5°C~35°C, RH ≤ 80% (non-condensing)
Power input	DC 5V/2A

Advancing Precision in Respiratory Care
