Imagine trying to assess the health of a delicate, intricate network of pipes inside a wall. Traditionally, you might blast air through them and measure how hard you have to blow to find a blockage. But what if the pipes were in a child, an elderly person, or someone too frail to blow hard? This is the challenge doctors face with traditional lung function tests. Enter Impulse Oscillometry (IOS) , a revolutionary technique that listens to the lungs while the patient simply breathes normally.
What is IOS?
Impulse Oscillometry is a lung function test based on the Forced Oscillation Technique (FOT) , first described by Dubois in 1956 . Unlike traditional spirometry—which requires patients to take a deep breath and exhale as forcefully and fast as possible—IOS uses sound waves to measure how air moves through the lungs.

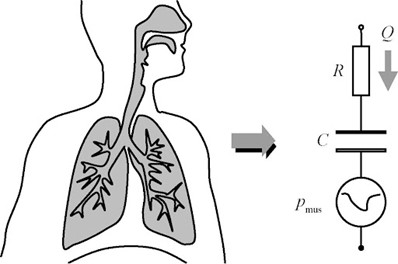

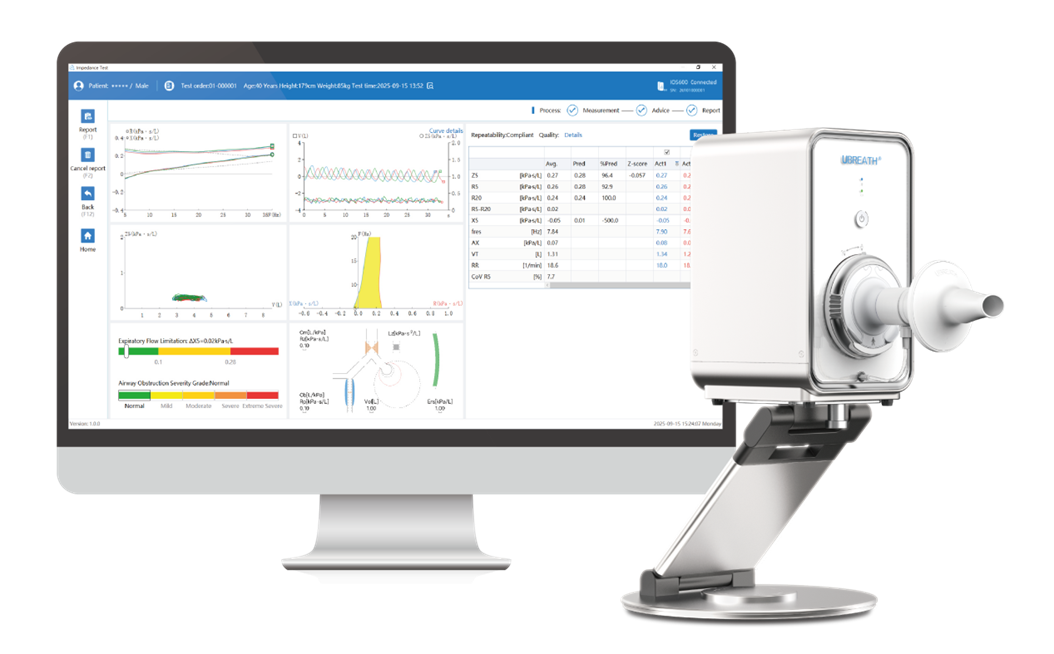

Think of it like a radar system for the chest. The machine sends a small, silent impulse (or sound wave) into the lungs via a mouthpiece while the patient sits quietly and breathes in and out normally . As these sound waves travel, they bounce back based on the condition of the airways. By analyzing how the waves change, the computer calculates the resistance (narrowness of the pipes) and reactance (the elasticity or "springiness" of the lung tissue) .
Why is IOS a Game-Changer?
The biggest advantage of IOS is that it is effort-independent . Traditional lung function tests require significant cooperation. Young children, elderly patients with cognitive decline, or individuals suffering from severe breathlessness often struggle to perform the forced maneuvers required for standard tests.
IOS eliminates this barrier. The patient only needs to wear a nose clip, bite on a mouthpiece, and breathe calmly for about 30 seconds. A technician or the patient lightly presses on their cheeks to prevent vibrations from distorting the results . Because it requires minimal cooperation, it is particularly effective for preschool children (starting as young as 3 years old) and patients in the ICU .
The Science of Sound: Key Parameters
IOS doesn't just tell a doctor if the lungs are "bad" or "good"; it tells them where the problem is and what kind of problem exists. It achieves this by using different frequencies of sound.
1. Resistance (R) – The "Narrowness" of the Pipes
R5 (Resistance at 5 Hz): Low-frequency sound waves travel far, reaching the tiny, deep airways (small airways). If R5 is high, it indicates that the peripheral or small airways are obstructed .
R20 (Resistance at 20 Hz): High-frequency sound waves bounce off the larger, central airways (like the trachea and main bronchi) before reaching the deep parts. R20 reflects the central airway resistance .
R5-R20: The difference between these two values tells us about the "frequency dependence." In healthy adults, resistance doesn't change much between low and high frequencies. However, if the small airways are clogged or inflamed, R5 will be much higher than R20, resulting in a large R5-R20 value—a key indicator of small airway disease .

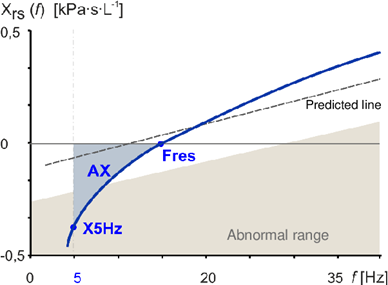

2. Reactance (X) – The "Springiness" of the Lungs
X5 (Reactance at 5 Hz): This measures the elastic recoil (the ability of the lungs to spring back). In diseases like pulmonary fibrosis (stiff lungs) or COPD (hyperinflation), the X5 value becomes more negative than normal .
Fres (Resonant Frequency): This is the point where the elastic forces and the inertial forces cancel each other out. A high Fres usually indicates increased obstruction in the airways .
AX (Reactance Area): Often called the "Goldman Triangle," this area under the curve between 5 Hz and Fres is a sensitive marker for the overall health of the peripheral airways .
Clinical Applications: Who Benefits?
1. Diagnosing Asthma in Young Children
Diagnosing asthma in toddlers is notoriously difficult because they cannot perform spirometry. IOS has become a crucial tool here. It can detect abnormalities in airway resistance long before symptoms become severe. Studies show that IOS is highly effective in identifying obstructive patterns in wheezing preschoolers and can even measure how well a child responds to a bronchodilator (inhaler) .
2. Detecting Small Airway Dysfunction (SAD)
This is one of IOS’s superpowers. The small airways are often called the "silent zone" because damage can occur there without the patient noticing and without affecting traditional FEV1 scores. In conditions like COPD and asthma, IOS can identify small airway dysfunction much earlier than spirometry, allowing for earlier intervention .
3. Assessing Treatment Response
Because the test is so quick and easy, it is perfect for monitoring whether medication is working. For example, after receiving a bronchodilator (like albuterol), doctors can immediately see if the R5 (small airway resistance) drops. A significant drop confirms that the airways are reactive to the medication
4. Special Populations
IOS is incredibly versatile. It has been used successfully in:
Patients with Primary Ciliary Dyskinesia (PCD): Recent studies show IOS can detect significant differences in airway resistance in these young patients .
Veterans and Industrial Workers: It has been used to detect airway damage in individuals exposed to toxic dust or chemicals, even when their standard spirometry results appeared normal .
Restrictive Lung Diseases: While traditionally used for obstructive diseases, emerging research suggests IOS can also help identify restrictive defects (where the lungs cannot fully expand) .
Conclusion
In the world of respiratory medicine, Impulse Oscillometry represents a shift towards patient-centric care. By allowing patients to simply relax and breathe, it opens the door for accurate diagnosis in populations previously left underserved—young children, the elderly, and the critically ill.
As research continues, IOS is proving to be more sensitive than traditional tests in detecting early lung damage, specifically in the small airways. It is no longer just an alternative to spirometry; it is a complementary, sophisticated tool that gives us a clearer picture of what is happening deep inside our lungs, one gentle breath at a time.
